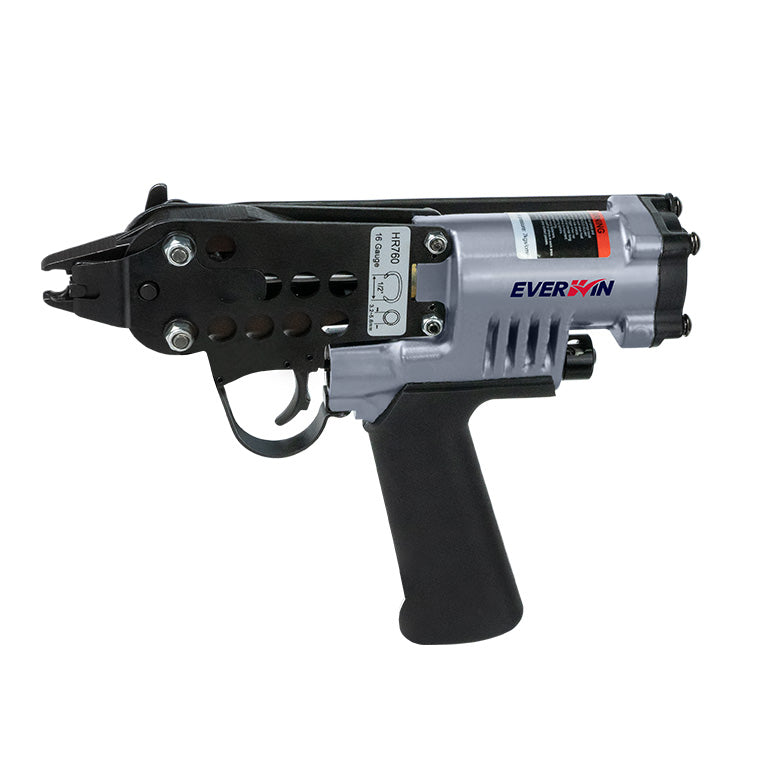

Everwin HR760 / HR761 CL12 Pneumatic C Ringer, loose or tight ring

Everwin HR760 / HR761 CL12 Pneumatic C Ringer, loose or tight ring

Regular price £567.00 GBP
Regular price Sale price £567.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Ring Closure
Quantity

Delivery approx 2-3 weeks

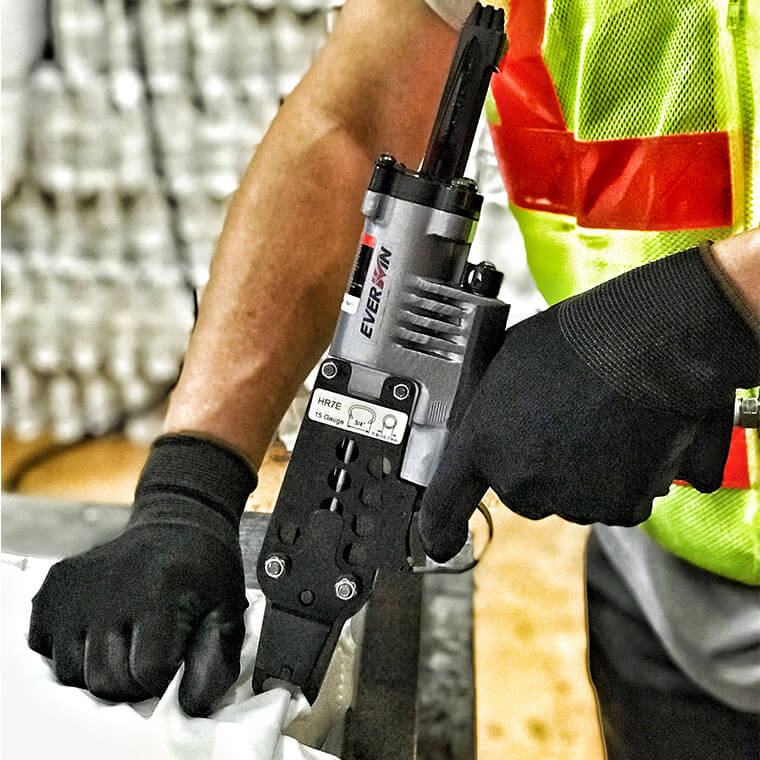

EVERWIN's line of pneumatic hog ringers is ideally suited for the closure of poly, mesh, and fabric bags in many different applications, as well as fencing and other hog ring applications. Designed and built for long service life in demanding production environments, these tools are extremely durable. An extensive range of tools suiting different ring sizes allow professionals to select the correct ring dimensions that fit their applications intended. All EVERWIN hog ring tools can be set up with zero balancer and manifold kit on a production line for applications where the bag is too heavy to easily lift or move.

  • APPLICATIONS
  • Large bag closure: concrete/powder, etc. bag liner closure
  • Car and boat seats upholstery
  • Securing strands or light strings to cabling
  • Mesh poultry, fruit, vegetable bags
  • Oil and fluid absorption socks
  • Securing netting in various applications
  • Heat and sound insulation
  • Loop forming: rope, bungee, wire/netting
  • Bedding: flange to spring
  • Wire Cages, Fencing

ALL METAL CONSTRUCTION

Endures rough production work environments

PNEUMATIC PISTON RETURN

Minimizes cycle time

LEFTY-FRIENDLY

Adjustable for left or right handed operations

Weight 1.29 kgs (2.9 lbs)
Height 189mm (7.4")
Width 89mm (3.5")
Length 335mm (13.2")
Operating Pressure 5.9~7.9 bar (85 to 115 psi )
Driving Power (in-lbs @100psi)
Air Consumption (L/sec @90psi) 0.5 (1.05 cfm)



Nose length on tool: 25mm (1")

Fires Bostitch RING516G100 and CL12 C Rings

FASTENER SPECIFICATION

Type 16 GA. Meihotech 47ALD / Bostitch RING516G100
Loading Capacity 110 Rings
Tip Finish Sharp or Blunt
Ring Height 9mm (3/8")
Crown Width 16.8mm (21/32")
Wire Dia. 1.6mm (0.063")
Open Ring Size 12.5mm (1/2")
Closure Ring Size

HR760 : 3.2-5.6mm  (1/8"-7/32")

HR761 : 4.8-5.6mm  (3/16"-7/32")
